Sharpening Tool Series Grades
Optimised on the basis of the classic CF10F grade, the wetting angle between the grain and the liquid phase is strengthened by trace elements, making it both tough and wear-resistant. This makes our tools perfect for machining stainless steel, aluminium-magnesium alloys and other materials.
| range | grades | Cobalt content (%) | Density (g/cm3) | durometer | Flexural strength(Mpa) | Scope of application |
| Cutting Series | CF03F | 4 | 15.10 | 94.5 | ≥2200 | High hardness grades for milling, reaming and diamond coating. For machining aluminium alloys, graphite, composites, etc. |
| CF09U | 9 | 14.55 | 93.5 | ≥4000 | Ultra-fine grain alloy, sharp edge, extremely wear-resistant, not easy to deform. Suitable for making milling cutters and reamers. Can be used for high-speed cutting, processing of ultra-high hardness materials (HRC>60). | |
| CF12F | 12 | 14.12 | 92.5 | ≥4300 | Ultra-fine grain alloy, compatible with good hardness and toughness. Suitable for making end mills and reamers for finishing applications and for machining alloy steels, aluminium alloys and titanium alloys. | |
| CF10F | 10 | 14.60 | 92.3 | ≥3800 | Sub-micro grain alloy with both toughness and wear resistance. Suitable for making drills and milling cutters. Can be used for general alloy steel, grey cast iron, stainless steel, heat-resistant alloy processing. | |
| VG12F | 12 | 14.13 | 91.3 | ≥3900 | Sub-micro grain alloy with very high chipping resistance. Suitable for milling cutters, specially designed for high-speed milling of 316L stainless steel materials. | |
| CF08 | 6 | 15.00 | 92.5 | ≥3700 | Corrosion-resistant grades that protect against chemical influences such as resins and glues. At the same time, it has good anti-reinforcement properties and is suitable for processing of various fibreboards and chipboards. | |
| CF10 | 6 | 15.00 | 92.0 | ≥3100 | ||
| CF20 | 7 | 14.75 | 91.0 | ≥3200 | Anti-corrosion, anti-chipping, good general performance. It is suitable for all kinds of hardwood, softwood and chipboard processing. |

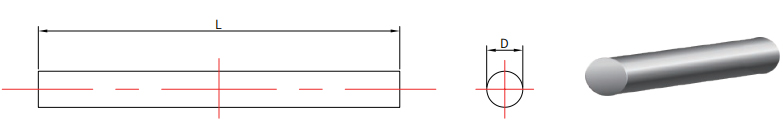

| semifinished products | Fine grinding H6 | lengths | tolerance | semifinished products | Fine grinding H6 | lengths | tolerance | ||
| outer diametermm | tolerance | Outer diameter mm | tolerance | ||||||
| φ2.2 | 0-0.3 | φ2.0 | 330 | 0-0.4 | φ17.2 | 0-0.4 | φ17.0 | 330 | 0-0.4 |
| φ3.2 | 0-0.3 | φ3.0 | 330 | 0-0.4 | φ18.2 | 0-0.4 | φ18.0 | 330 | 0-0.4 |
| φ4.2 | 0-0.3 | φ4.0 | 330 | 0-0.4 | φ19.2 | 0-0.4 | φ19.0 | 330 | 0-0.4 |
| φ5.2 | 0-0.3 | φ5.0 | 330 | 0-0.4 | φ20.2 | 0-0.5 | φ20.0 | 330 | 0-0.4 |
| φ6.2 | 0-0.3 | φ6.0 | 330 | 0-0.4 | φ21.2 | 0-0.5 | φ21.0 | 330 | 0-0.4 |
| φ7.2 | 0-0.3 | φ7.0 | 330 | 0-0.4 | φ22.2 | 0-0.5 | φ22.0 | 330 | 0-0.4 |
| φ8.2 | 0-0.3 | φ8.0 | 330 | 0-0.4 | φ23.2 | 0-0.5 | φ23.0 | 330 | 0-0.4 |
| φ9.2 | 0-0.3 | φ9.0 | 330 | 0-0.4 | φ24.2 | 0-0.6 | φ24.0 | 330 | 0-0.4 |
| φ10.2 | 0-0.3 | φ10.0 | 330 | 0-0.4 | φ25.2 | 0-0.6 | φ25.0 | 330 | 0-0.4 |
| φ11.2 | 0-0.3 | φ11.0 | 330 | 0-0.4 | φ26.2 | 0-0.6 | φ26.0 | 330 | 0-0.4 |
| φ12.2 | 0-0.3 | φ12.0 | 330 | 0-0.4 | φ27.2 | 0-0.6 | φ27.0 | 330 | 0-0.4 |
| φ13.2 | 0-0.3 | φ13.0 | 330 | 0-0.4 | φ28.2 | 0-0.6 | φ28.0 | 330 | 0-0.4 |
| φ14.2 | 0-0.3 | φ14.0 | 330 | 0-0.4 | φ29.2 | 0-0.6 | φ29.0 | 330 | 0-0.4 |
| φ15.2 | 0-0.3 | φ15.0 | 330 | 0-0.4 | φ30.2 | 0-0.6 | φ30.0 | 330 | 0-0.4 |
| φ16.2 | 0-0.3 | φ16.0 | 330 | 0-0.4 | φ32.2 | 0-0.6 | φ32.0 | 330 | 0-0.4 |
