Metal stretching series grades

Developed for the phenomenon of pulling and sticking of SPCC, copper, aluminium, stainless steel and other metal stretching, it suppresses the occurrence of sticking and sintering by reducing the amount of CO and adding special materials.

range	grades	Cobalt content (%)	Density (g/cm3)	durometer	Flexural strength(Mpa)	Scope of application
Metal drawing series	CF03N	3.5	15.10	94.5	≥1500	Ultra-high abrasion resistance, high temperature resistance, corrosion resistance. Suitable for small outer diameter wires,Tubes and battery round shell products of stretching processing.
	CF06F	6	14.90	93.3	≥3200
	CF10F	10	14.60	92.3	≥3800	Fine grain formula, medium cobalt content, high strength and versatility.Suitable for all kinds of drawing punches and battery punches.
	VG20F	15	13.95	90.2	≥4000
	CF40	10	14.62	89.5	≥3200	It has good toughness and is suitable for drawing of bars, tubes and large-size profiles.
	VG05	12	14.32	89.0	≥3300
	VG15	14	14.15	88.0	≥3500	Strengthen the liquid phase and grain organisation, with anti-chipping and anti-cracking properties.It is suitable for the stretching of shaped profiles and large-size round shell products and battery square shells.
	SV5	15	13.80	87.3	≥2800

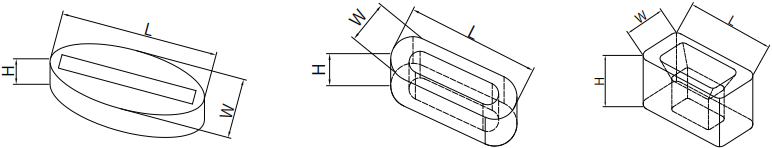

New energy battery square shell drawing concave mould
Square Shell Series	Overall dimensions	height
Sixth concave mould	410130-21112.7	70
Seventh concave mould	410130-21112.8	70
The eighth concave die	440120-211.413.3	30
The ninth concave mold	410130-210.112.1	50

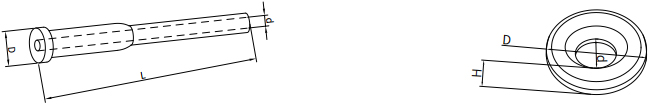

New energy battery round shell stretching punch rod				New energy battery round shell stretching die
	D	d	L		D	d	L
18650series	23~80	3~18	200~600	18650series	40~170	20~50	20~40
21700series				21700series
46800series				46800series
